Welcome to bMINTY

The Main Dashboard View

At a Glance

bMINTY is a locally deployed web application, offering structured management of data produced by the analysis of high-throughput sequencing experiments.

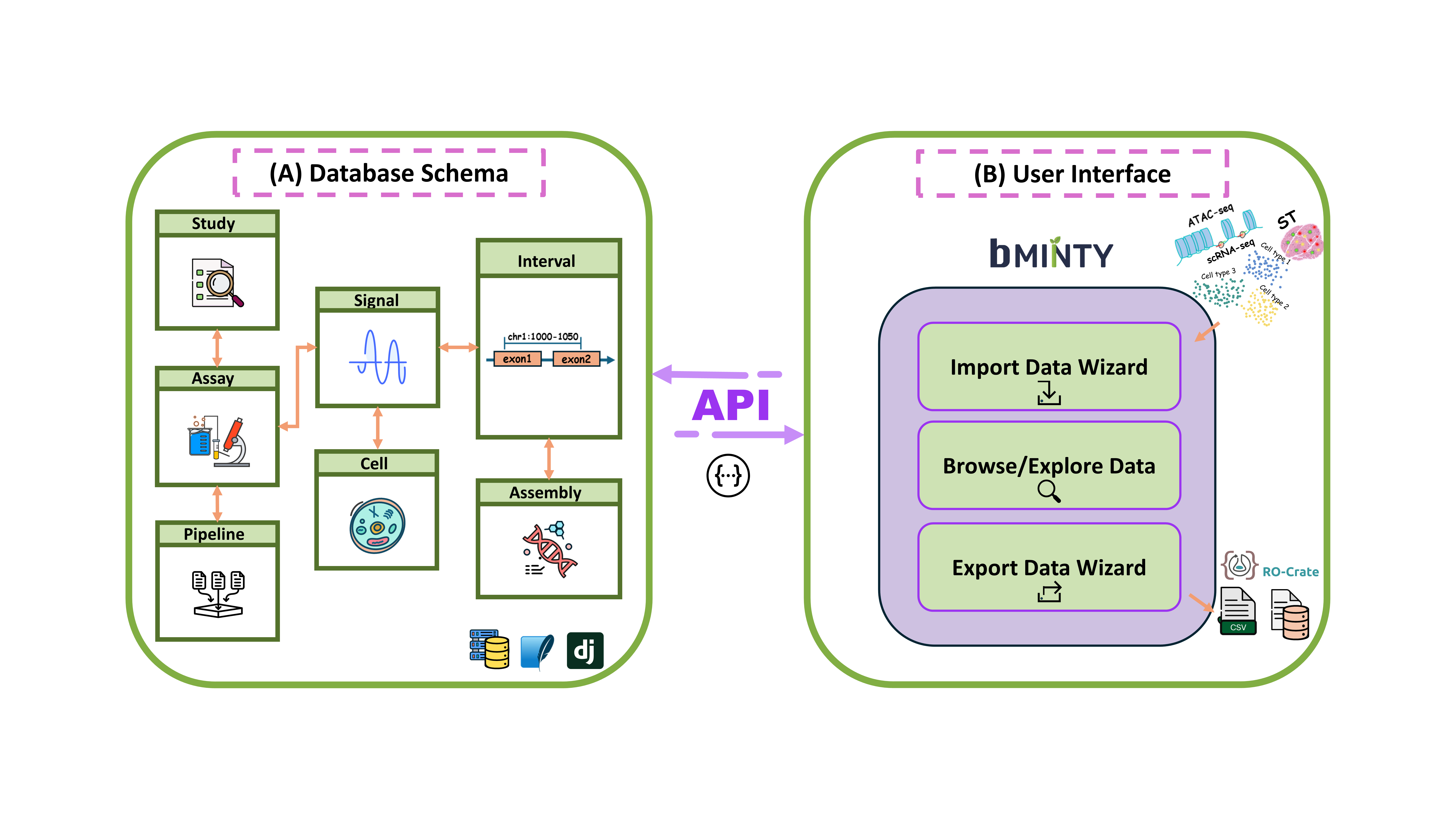

Overview of bMinty's architecture

Setup & Maintenance

Comprehensive guide to installing, configuring, and updating bMINTY using Docker.

1. Initial Installation

The simplest way to run bMINTY is with Docker. No external dependencies (Python/Node) are required.

# Clone the repository
git clone https://github.com/GeorgakilasLab/bMINTY
cd bMinty

# Start services (First time build)
docker compose up --build

2. Changing Ports

By default, the Frontend runs on 3000 and the Backend on 8000. To change this, you can use a .env file.

# Create .env file
cp .env.example .env

# Edit .env to set your preferred ports
FRONTEND_PORT=3001
BACKEND_PORT=8001

# Re-launch with new configuration
docker compose up --build

3. Accessing the Web Interface

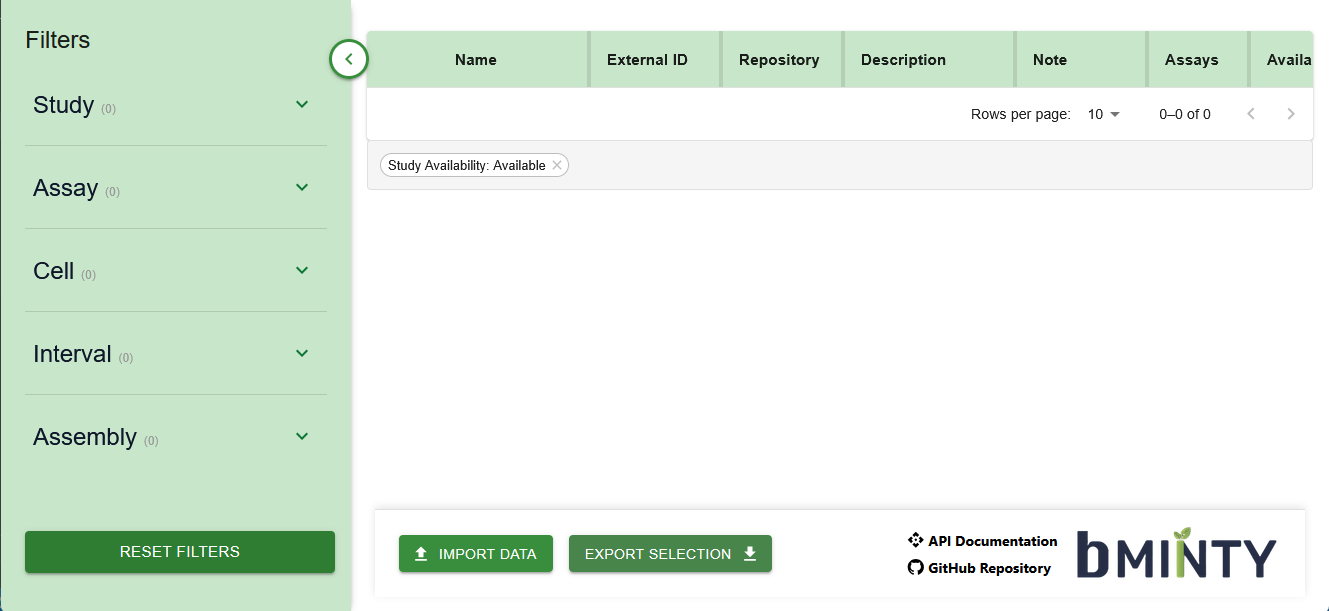

Once the Docker containers are running successfully, the bMINTY web interface can be accessed directly from your browser.

Default URL: http://localhost:3000
Backend API (default): http://localhost:8000

If you changed the ports using the .env file, make sure to use the corresponding values instead.

Example

If your .env contains:

FRONTEND_PORT=3001
BACKEND_PORT=8001

Then open:

Frontend: http://localhost:3001
Backend API: http://localhost:8001

4. Updating bMINTY

To update your instance with the latest features from GitHub:

# 1. Stop current containers
docker compose down

# 2. Pull latest code
git pull origin main

# 3. Rebuild containers to apply changes
docker compose up --build

Repo Layout

Backend: bmintyApi/ (Django API)
Frontend: bmintyReact/ (React UI)
Orchestration: docker-compose.yml

Explore Functionality

The Explore page lets you navigate your data hierarchy with ease:

Study → Assay → Data: Drill down to see all linked experiments and metadata.

To access the Explore page, open your browser and navigate to:

http://localhost:3000

Expanding Data Levels

Clicking on a Study row reveals associated Assays. Clicking an Assay reveals detailed metrics including pipeline info and assembly versions.

1. Expanding a Study

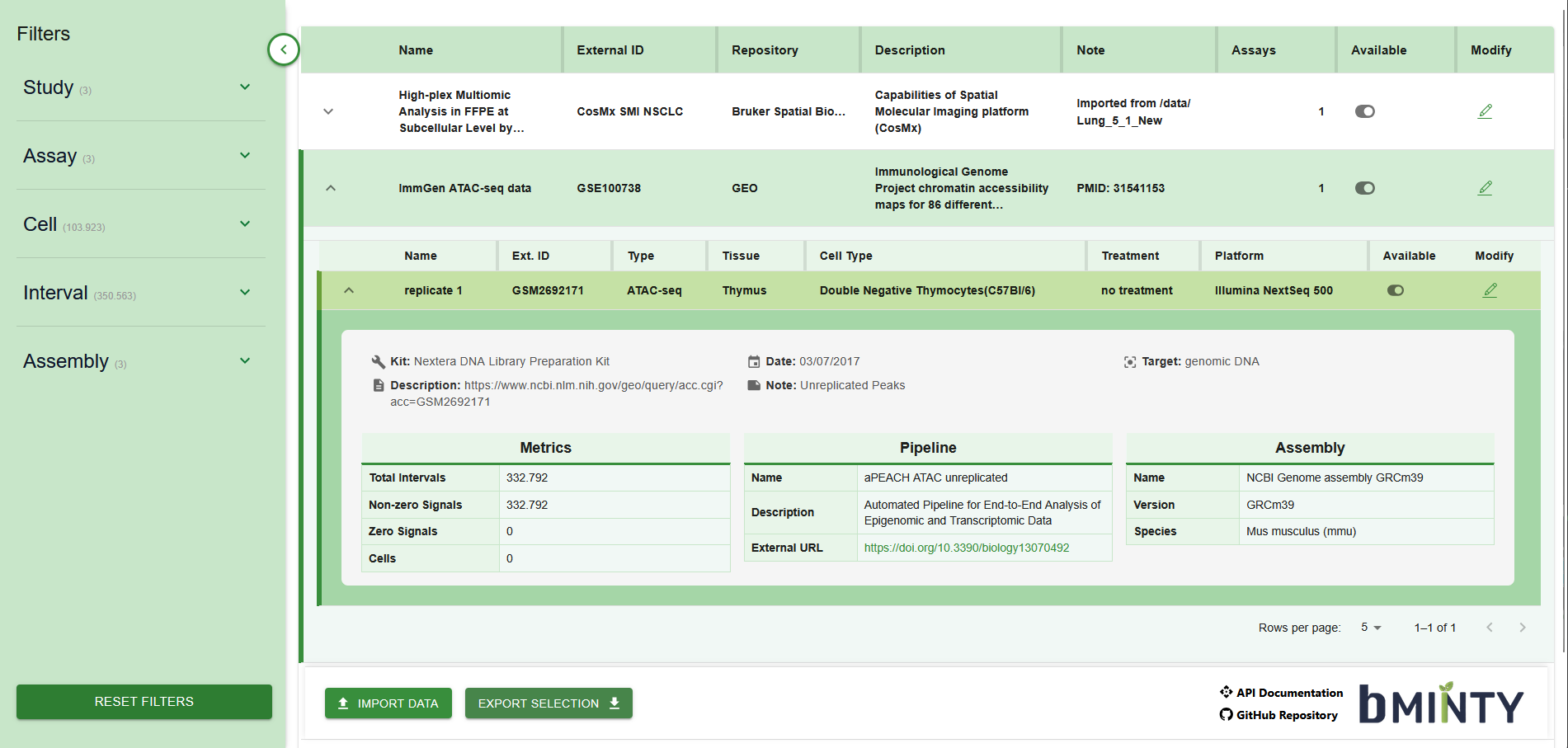

2. Viewing Assay Details

Modifying Metadata

You can edit study or assay details directly from the interface using the modify actions.

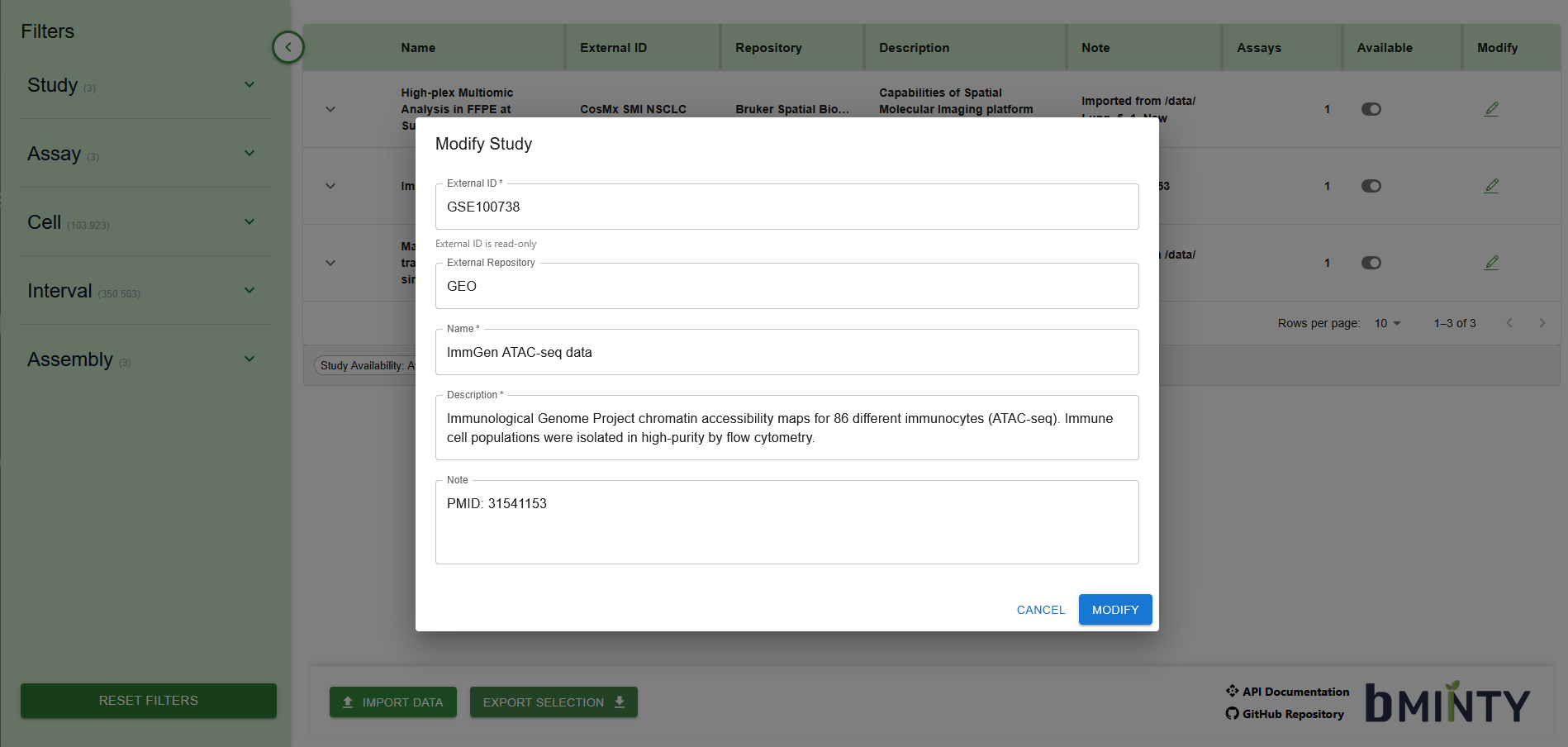

Editing Study Metadata

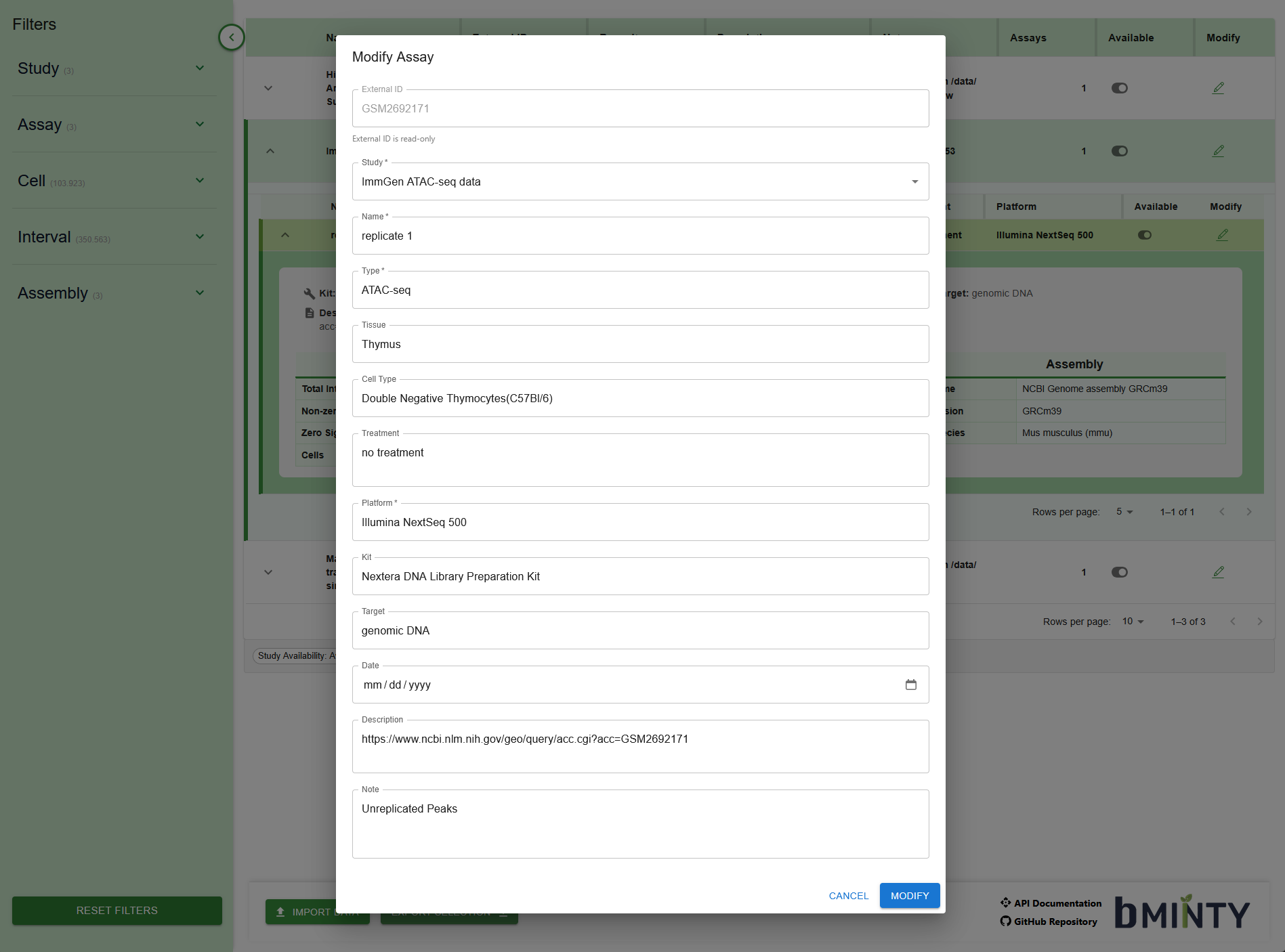

Editing Assay Metadata

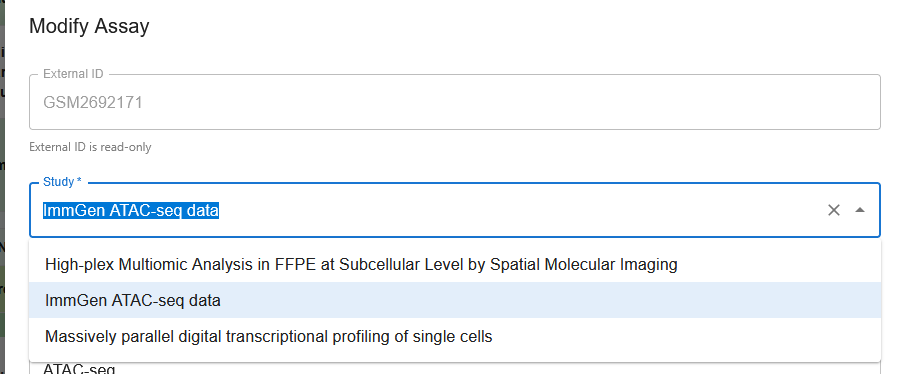

While editing an assay, you can assign it to a different study.

Filtering Panel

The sidebar filter panel allows you to drill down into massive datasets using metadata tags. The filters are auto-filled from the database.

The Global Filter Sidebar

Applying Selection. To undo a selection, you can click the x button, both on the filter panel and the main view.

Click Reset Filters to reset all filters to their default values

Detailed Filter Categories

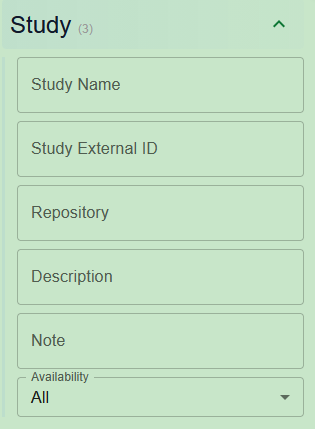

1. Study Filters

Study Name: A short, human-friendly unique identifier for the study.
Study External ID: A unique study identifier used to map the study to external repositories (e.g. GEO accession).
Repository: The external repository that originally hosts the study data (e.g. GEO, ArrayExpress).
Description: A detailed description of the purpose and context of the study.
Note: Any note related to the study.

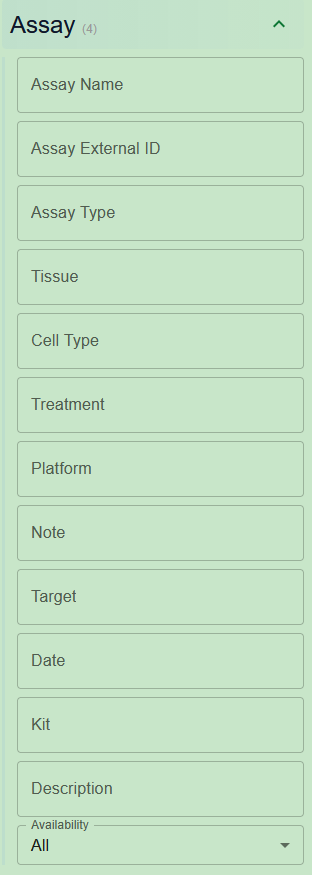

2. Assay Filters

Assay Name: A short, human-friendly unique identifier for the assay.
Assay External ID: The external id of the assay.
Assay Type: The type of assay that was performed.
Tissue: The tissue origin of the sample used for the assay.
Cell Type: The cell type isolated from the sample (if applicable).
Treatment: A brief description of any treatment applied prior to sampling.
Platform: The platform or technology used to perform the assay.
Note: Any note related to the assay.
Target: The molecular target of the assay (e.g. DNA, RNA), if applicable.
Date: The date on which the assay was performed.
Kit: The kit used to prepare the sample for the assay.
Description: A detailed description of the purpose of the assay.
Availability: Indicates whether the assay is visible in the user interface.

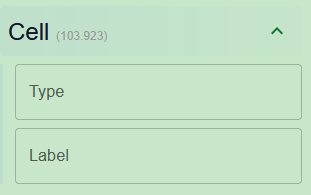

3. Cell Filters

Filter by Cell type and Cell label.

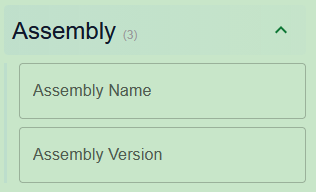

4. Assembly Filters

Filter by Assembly Name (GRCh38, mm10) or Version.

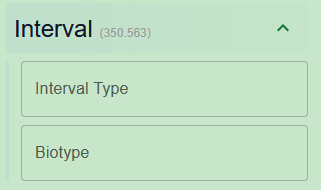

5. Interval Filters

Filter by genomic interval Types (e.g., Peaks, Genes) or Biotypes.

Data Import Wizard

The wizard guides you through ingesting complex genomic datasets safely. You can either import an entire database or individual tables.

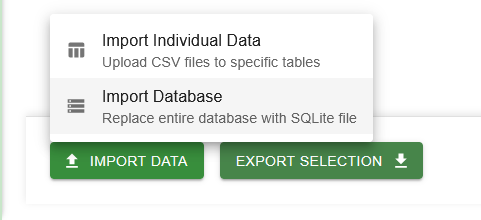

To access the wizard, select a button at the footer of the explore page.

Import Menu Selection

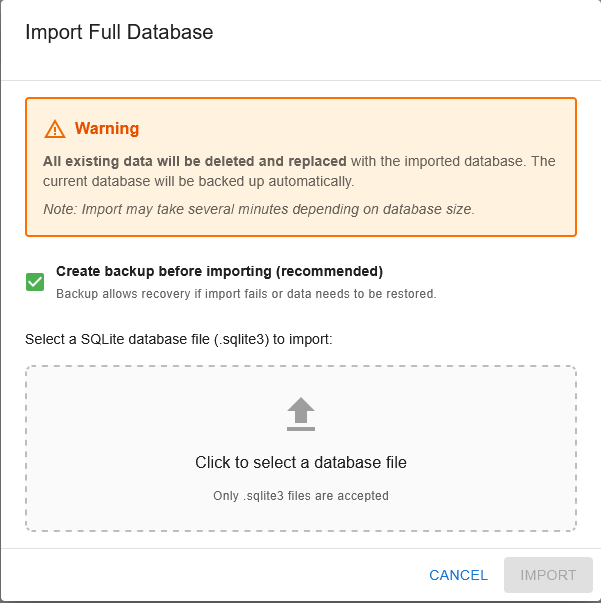

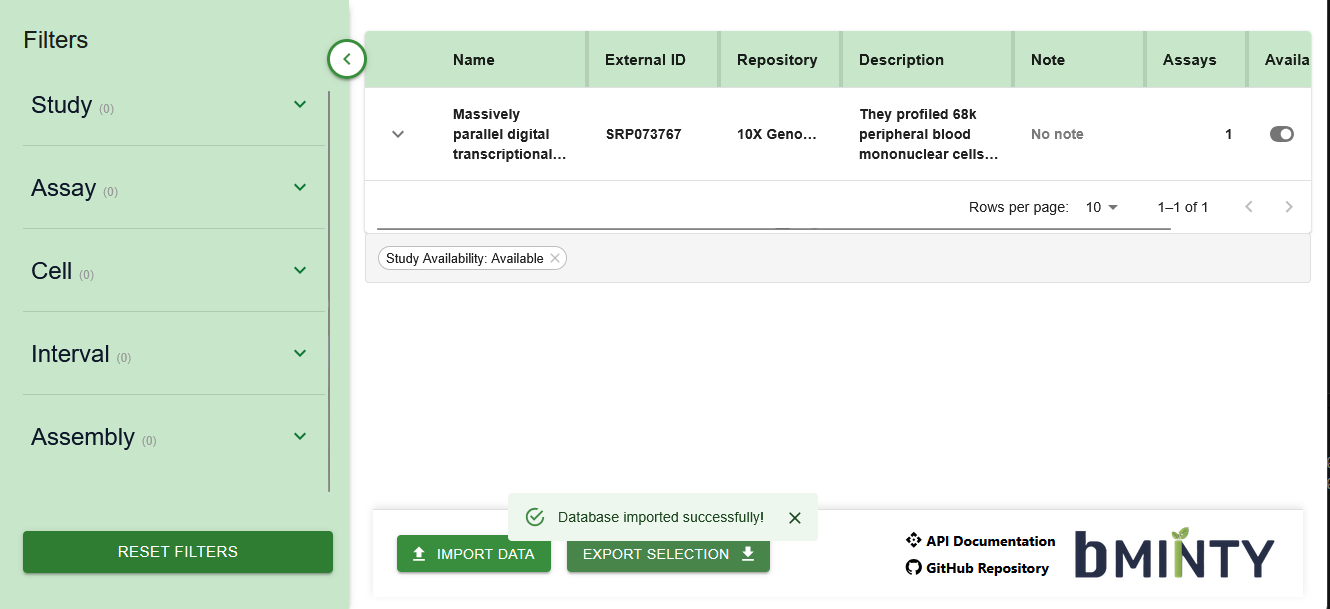

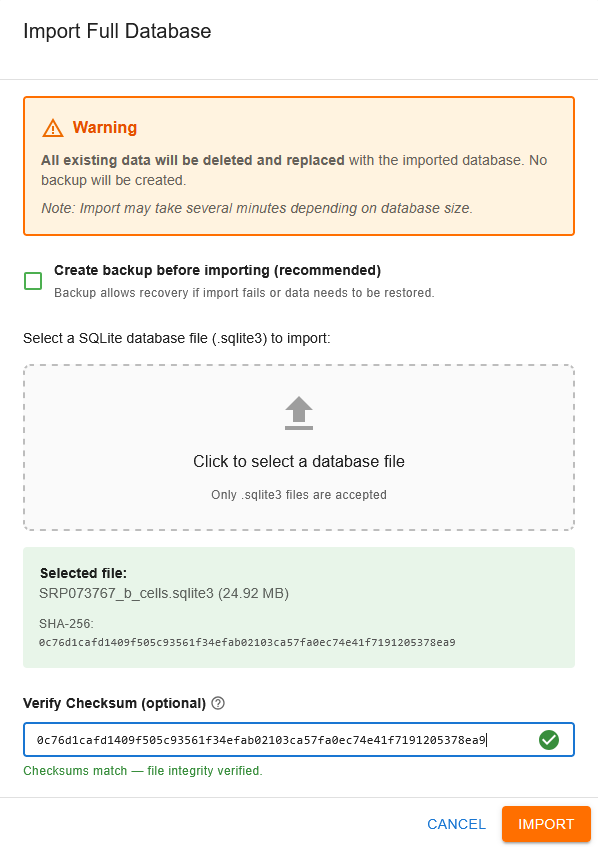

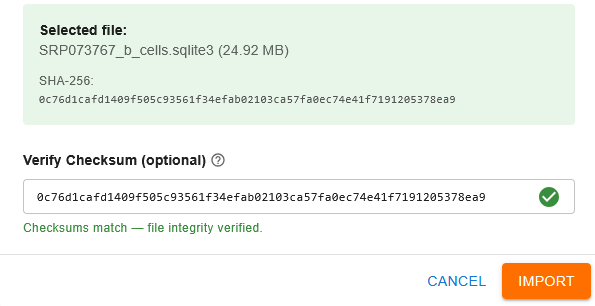

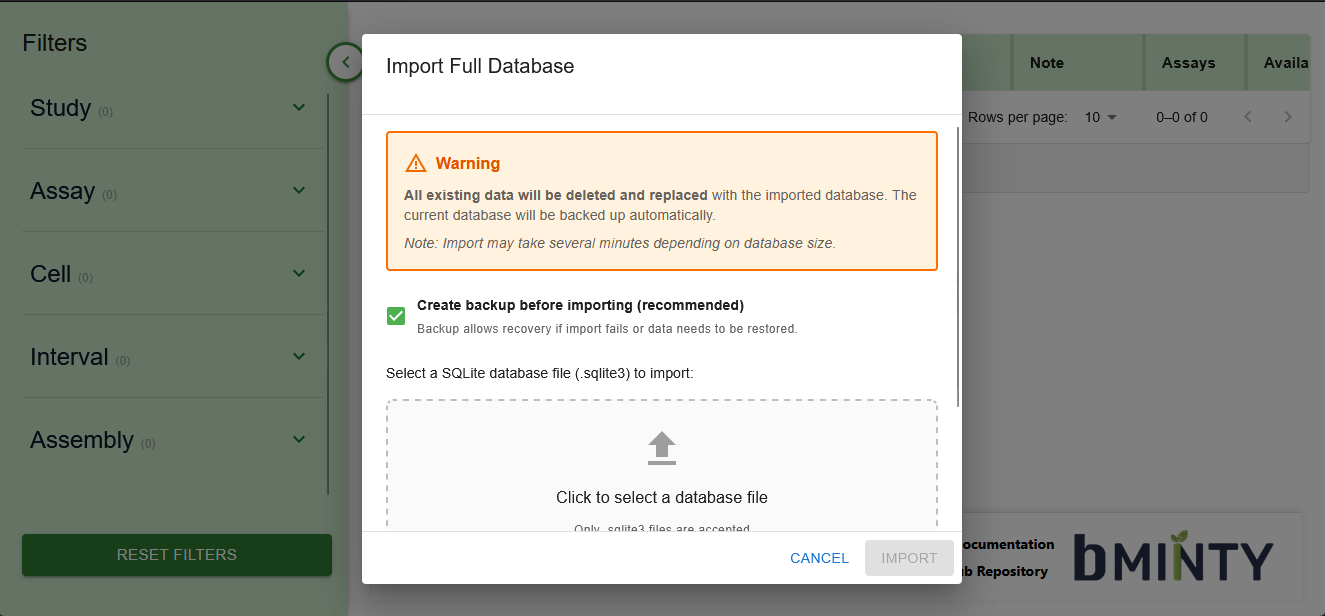

Import Entire SQLite Database. Select the create a backup option to safely backup your existing work.

Step-by-Step Wizard to import individual data.

Scroll horizontally to view all steps:

Step 1: Create or Select an existing Study

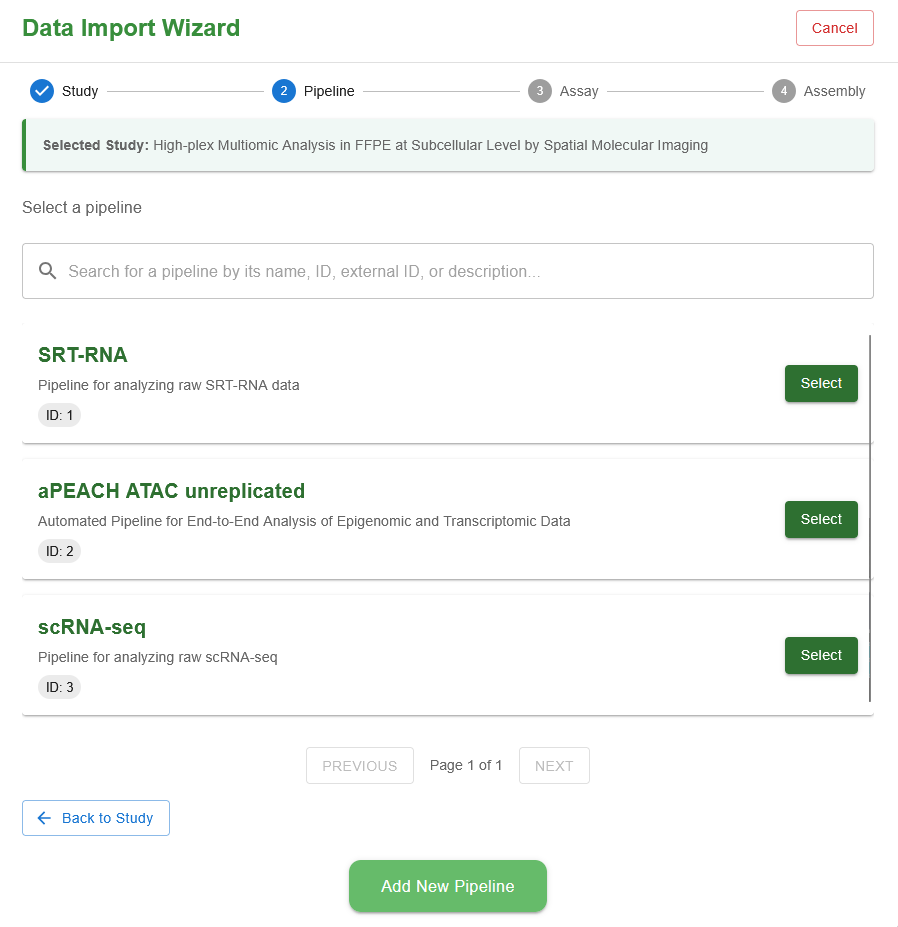

Step 2: Create or Select an existing Pipeline

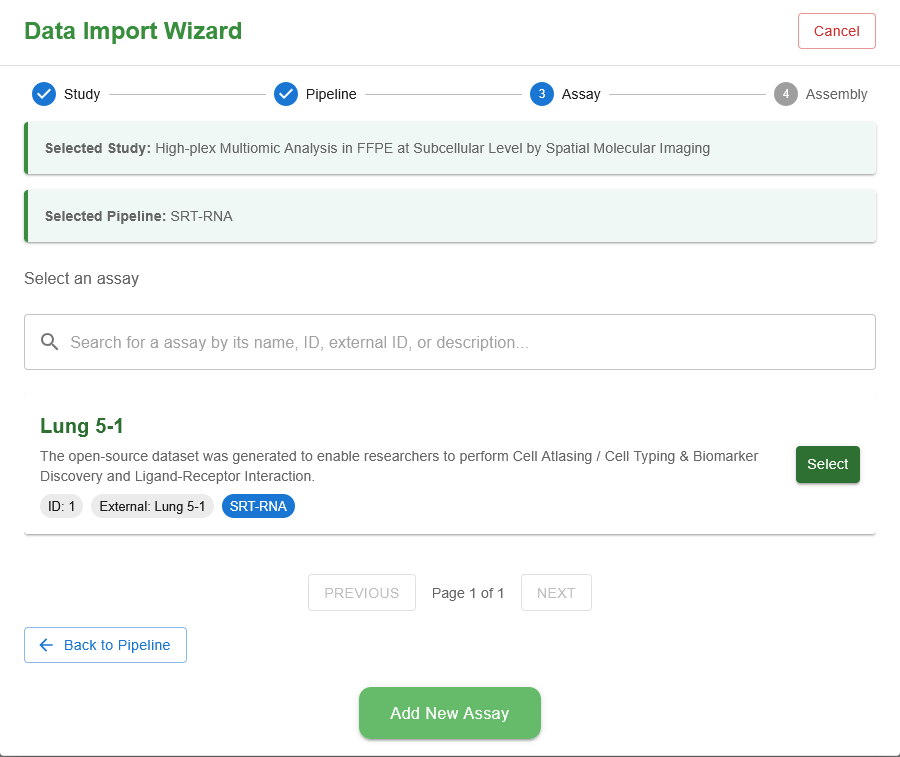

Step 3: Create or Select an existing Assay

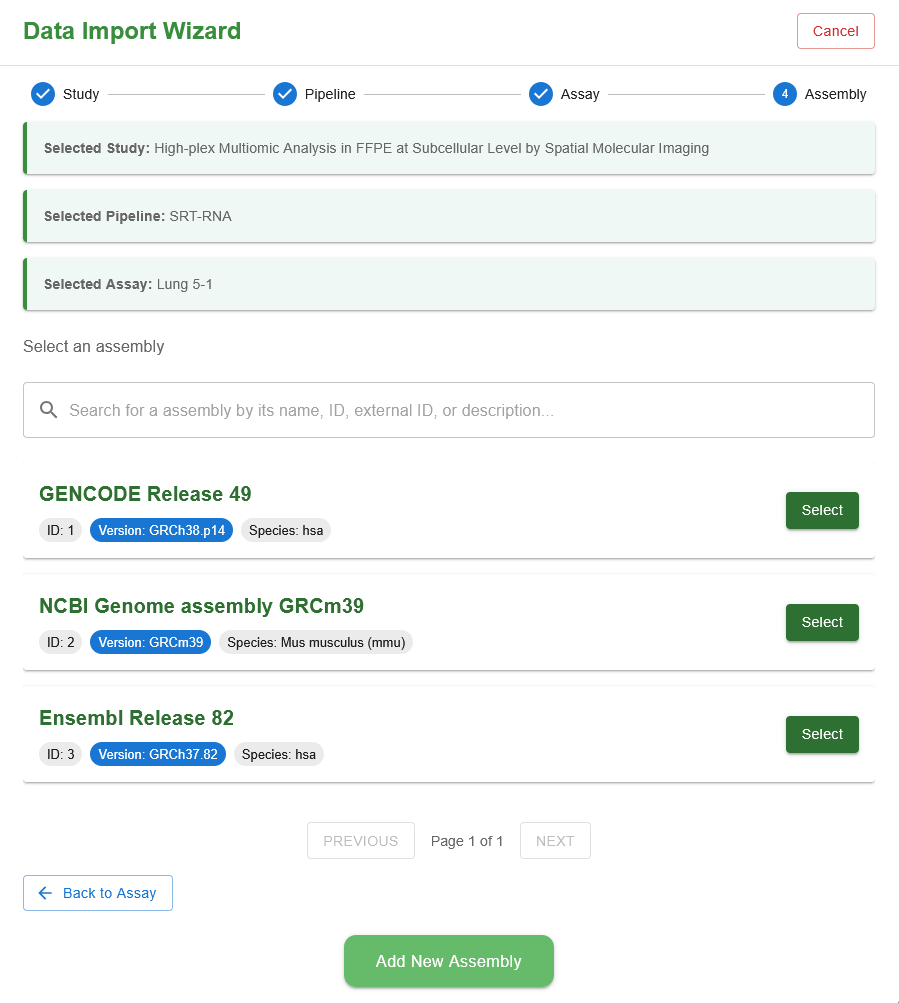

Step 4: Create or Select an existing Assembly

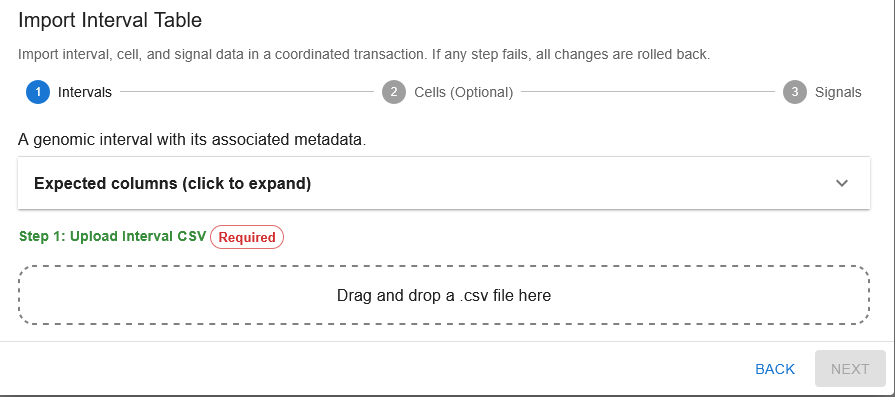

Step 5: Add Intervals

Step 6: Add Cells

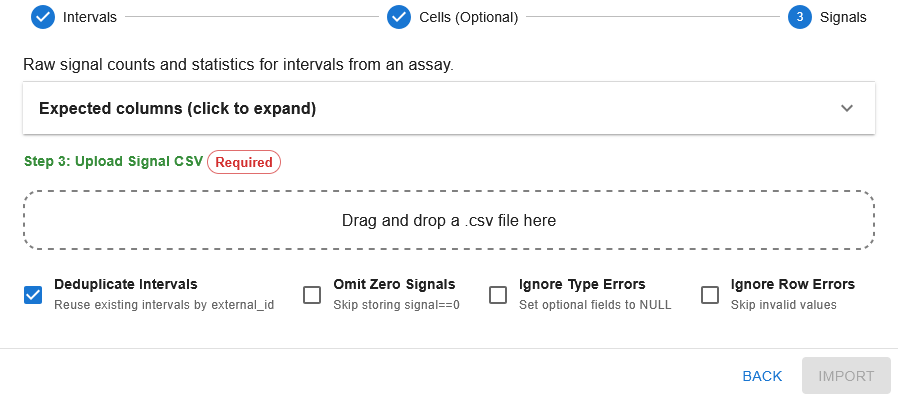

Step 7: Upload Signals

Exporting Data

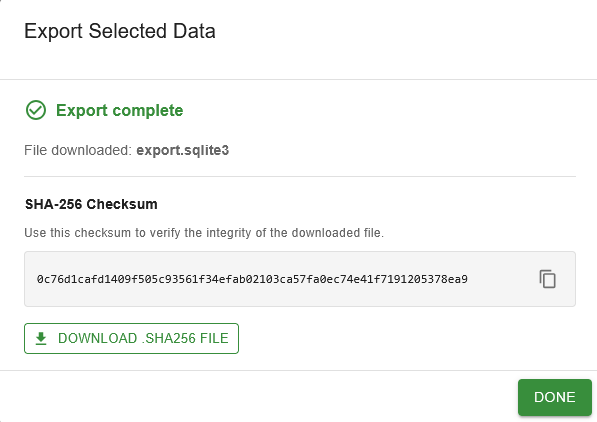

Export your curated data for downstream analysis or publication. You can export the full database or a filtered subset.

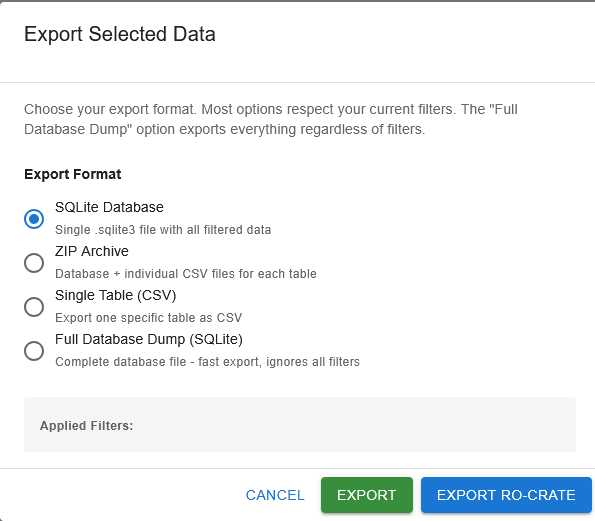

Export Configuration Dialog, without filters applied

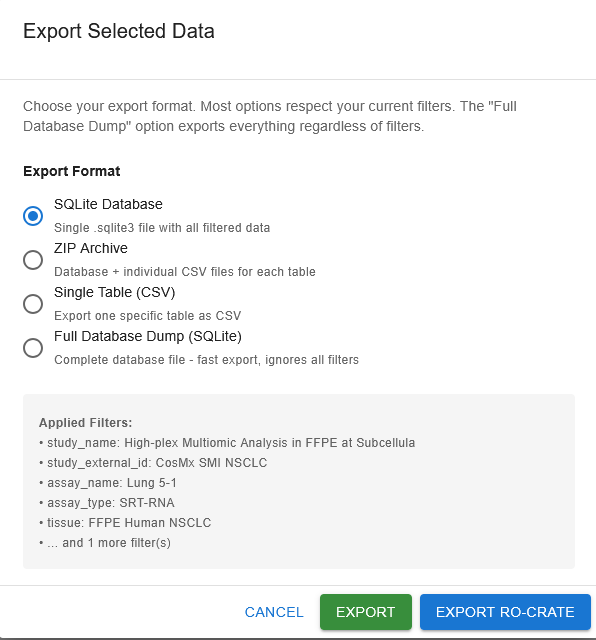

Export Configuration Dialog with Filters Applied

Supported Formats

RO-Crate: FAIR-compliant research object packaging, ideal for publication supplementary material.
CSV: Raw data tables for R/Python analysis.
SQLite: Full portable database snapshot.

Study Table

This table acts as the root of the data hierarchy, representing a coherent biological study.

Column Name	Description	Example
idPK	Primary Key	1
external_id	Unique study ID used to find the study in an external repository	GSE100738
external_repo	Name of the external repository that the external_id corresponds to	GEO
name	A short name that describes the study	ImmGen ATAC-seq data
description	A lengthy description of the study	Immunological Genome Project chromatin accessibility maps...
availability	Boolean flag that toggles visibility in the UI	1
note	Additional information or remarks	Study imported from Alpha laboratory

Pipeline Table

Stores metadata about the bioinformatic pipelines used to generate the data.

Column Name	Description	Example
idPK	Primary Key	1
name	A short name that describes the pipeline	aPEACH ATAC unreplicated
description	A lengthy description of the pipeline	Automated Pipeline for End-to-End Analysis...
external_url	URL of an external repository for the pipeline	https://doi.org/10.3390/biology13070492

Assay Table

Represents individual experiments performed within a study.

Column Name	Description	Example
idPK	Primary Key	1
study_idFK	Foreign key linking to the Study table	1
pipeline_idFK	Foreign key linking to the Pipeline table	1
external_id	Unique assay ID for external repositories	GSM2692171
type	Type of the assay	ATAC-seq
target	Target molecule of the assay (protocol-dependent)	genomic DNA
name	Short name that uniquely describes the assay	replicate 1
tissue	Tissue origin of the sample	Thymus
cell_type	Cell type isolated from the sample	Double Negative Thymocytes
treatment	Description of treatment applied	not applicable
date	Date the assay was performed	03/07/2017
platform	Sequencing platform used	Illumina NextSeq 500
kit	Preparation kit used	Nextera DNA Library Preparation Kit
description	Lengthy description or URL	https://www.ncbi.nlm.nih.gov/...
availability	Boolean flag that toggles visibility in the UI	1
interval_count	Total genomic intervals associated with the assay	332,792
signals_non_zero	Total signals with non-zero value	127,442,010
signals_zero	Total signals with zero value	855,419,590
note	Additional remarks	To be included in downstream analysis

Assembly Table

Stores reference genome assembly information.

Column Name	Description	Example
idPK	Primary Key	1
name	Name of the external repository hosting the assembly	NCBI Genome assembly GRCm39
version	Commonly used name of the assembly version	GRCm39
species	3-letter nomenclature of the species	Mus musculus (mmu)

Interval Table

Defines genomic regions (peaks, genes, regulatory elements) of interest.

Column Name	Description	Example
idPK	Primary Key	1
assembly_idFK	Foreign key linking to the Assembly table	1
external_id	Unique genomic interval ID set by user	32413
parental_id	External ID of a parental interval (hierarchical support)	null
name	Name assigned by repository or user	preT.DN1_peak_1
type	Type of interval (e.g., ATAC_peaks, Genes)	ATAC_peaks
biotype	Biotype (e.g., protein_coding)	-
chromosome	Chromosome identifier	GL456210.1
start	Chromosomal start coordinate	159375
end	Chromosomal end coordinate	159581
strand	DNA strand (+ or -)	+
summit	Coordinate of interval summit (peak-like intervals)	23

Cell Table

Stores single-cell or spatial resolution data points.

Column Name	Description	Example
idPK	Primary Key	1
assay_idFK	Foreign key linking to the Assay table	1
name	Name/Barcode of the cell	CGTGATGATTTCAC_1_b_cells
type	Resolution type reflecting capture technology	cell
label	Cell-type label classification	b_cells
x_coordinate	Spatial X coordinate	null
y_coordinate	Spatial Y coordinate	null
z_coordinate	Spatial Z coordinate	null

Signal Table

The core experimental data linking assays, intervals, and cells.

Column Name	Description	Example
idPK	Primary Key	507
assay_idFK	Foreign key linking to the Assay table	1
interval_idFK	Foreign key linking to the Interval table	1
cell_idFK	Foreign key linking to the Cell table	null
signal	Experimental signal (raw or normalized counts)	357.195
p_value	Statistical significance	421.397
padj_value	Adjusted statistical significance	197.117

Backend API

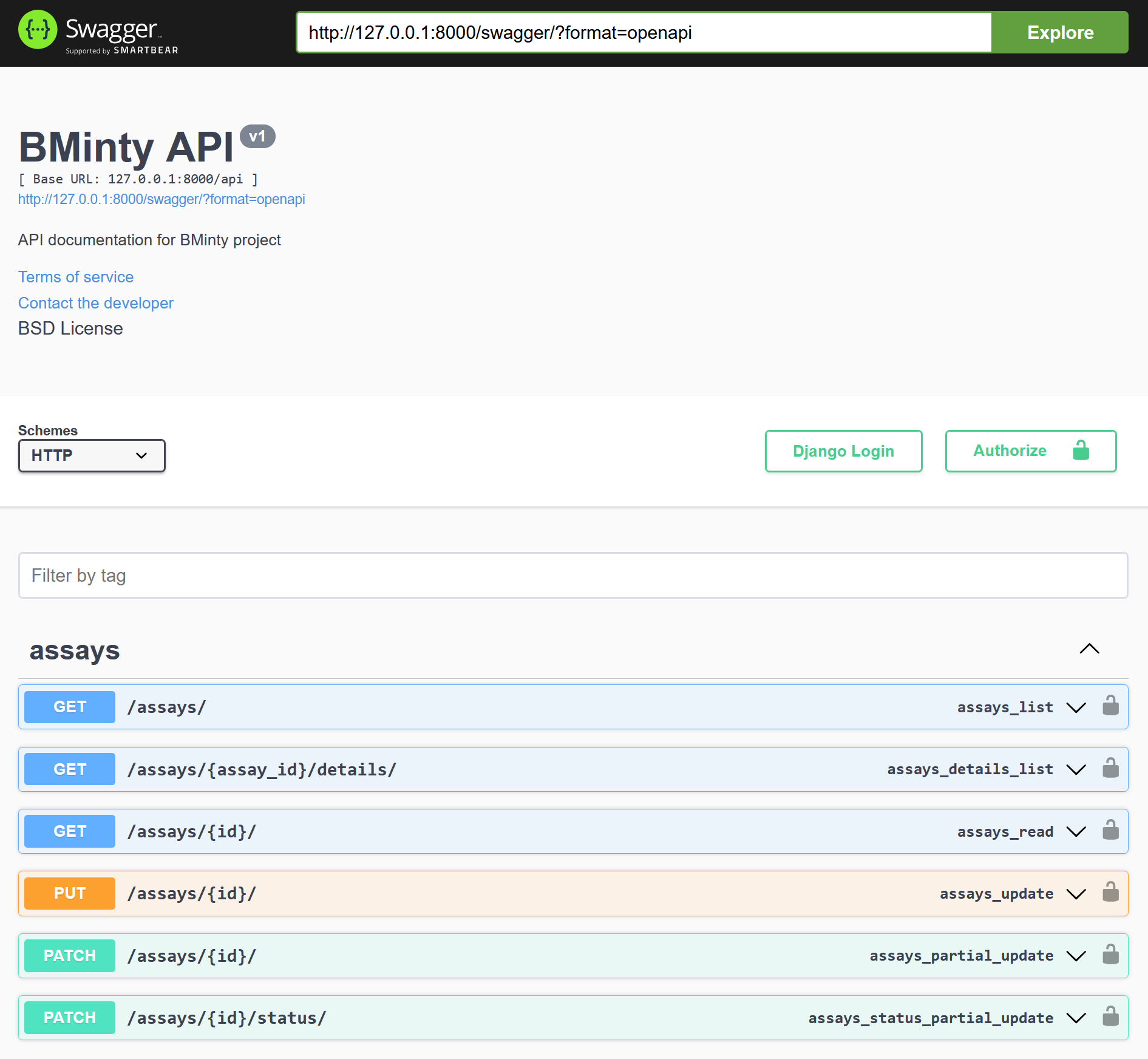

bMINTY exposes a full REST API. A Swagger UI is available at http://localhost:8000/api/schema/swagger-ui/ for interactive documentation.

Swagger Documentation Interface
